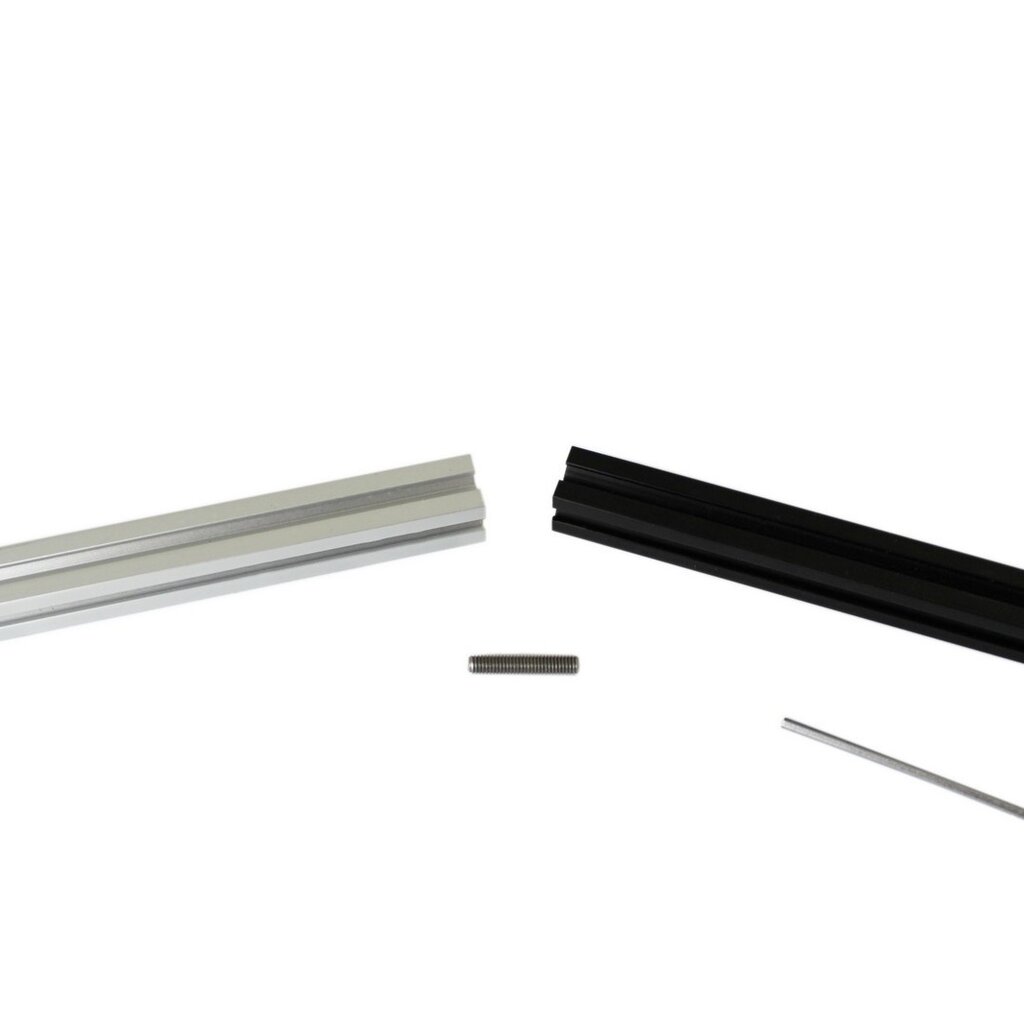

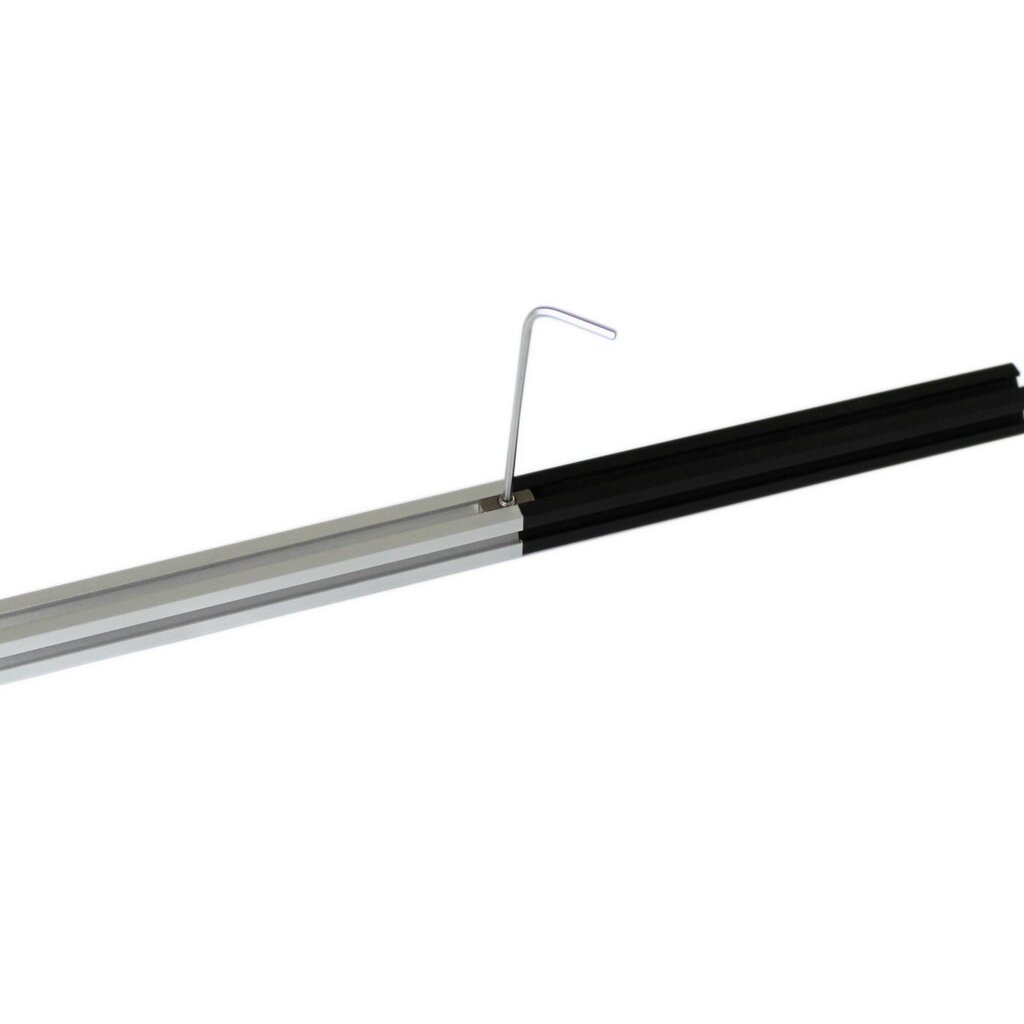

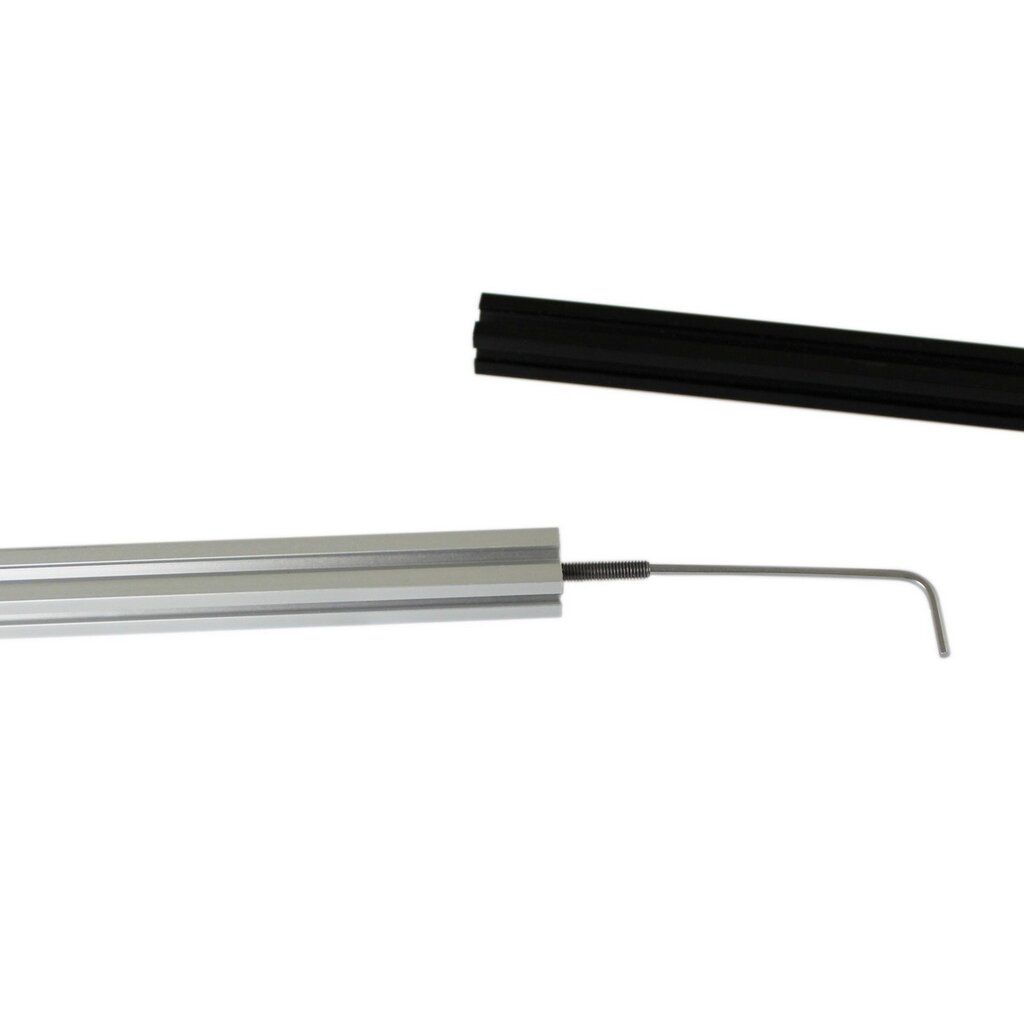

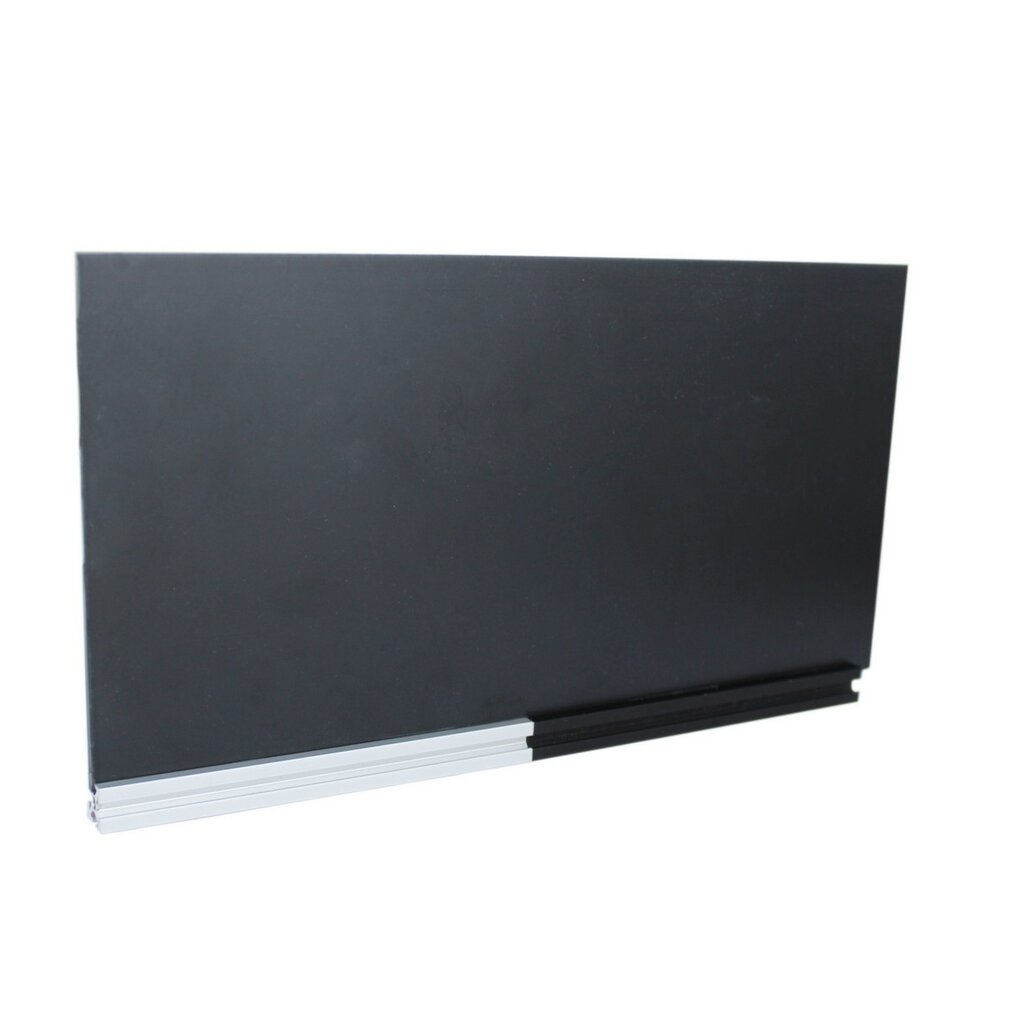

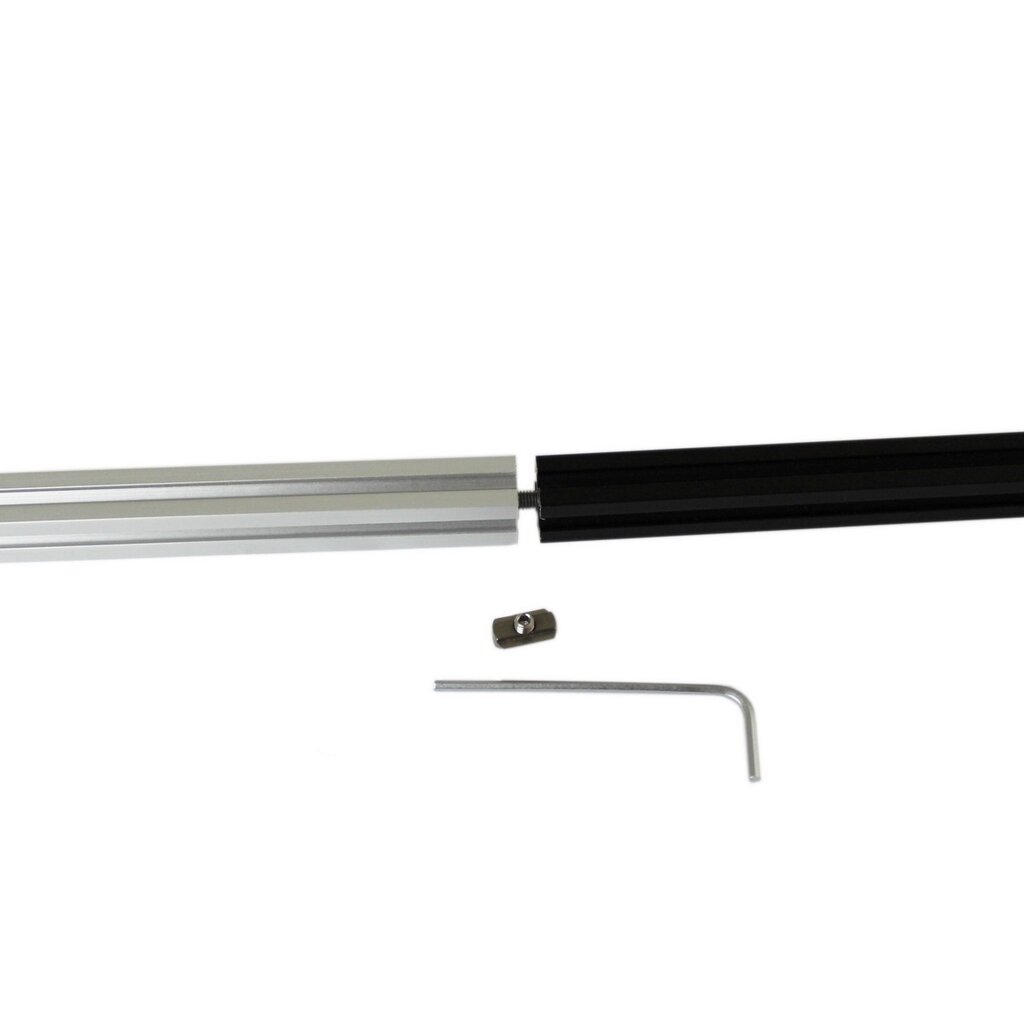

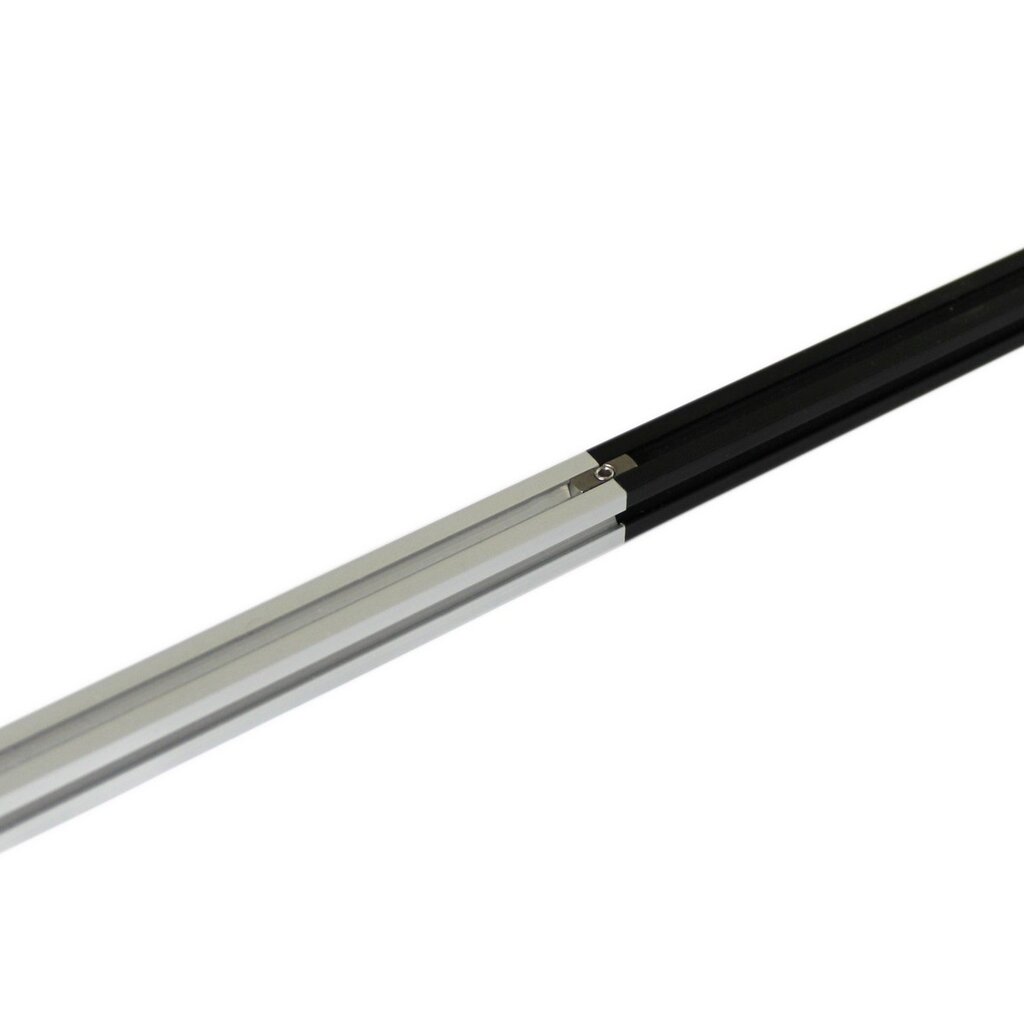

The items in the 'beam lengthening set' can be used to seamlessly extend beams. This connection provides a smooth and sleek finish, with the fastener being hardly visible. The 16mm hexagon socket screw keeps the beams together and you only need to use a T-slot nut on one side to secure the extension leaving the other three sides clear. In addition to a smooth finish this makes it easier to fit a sheet over the extended length.

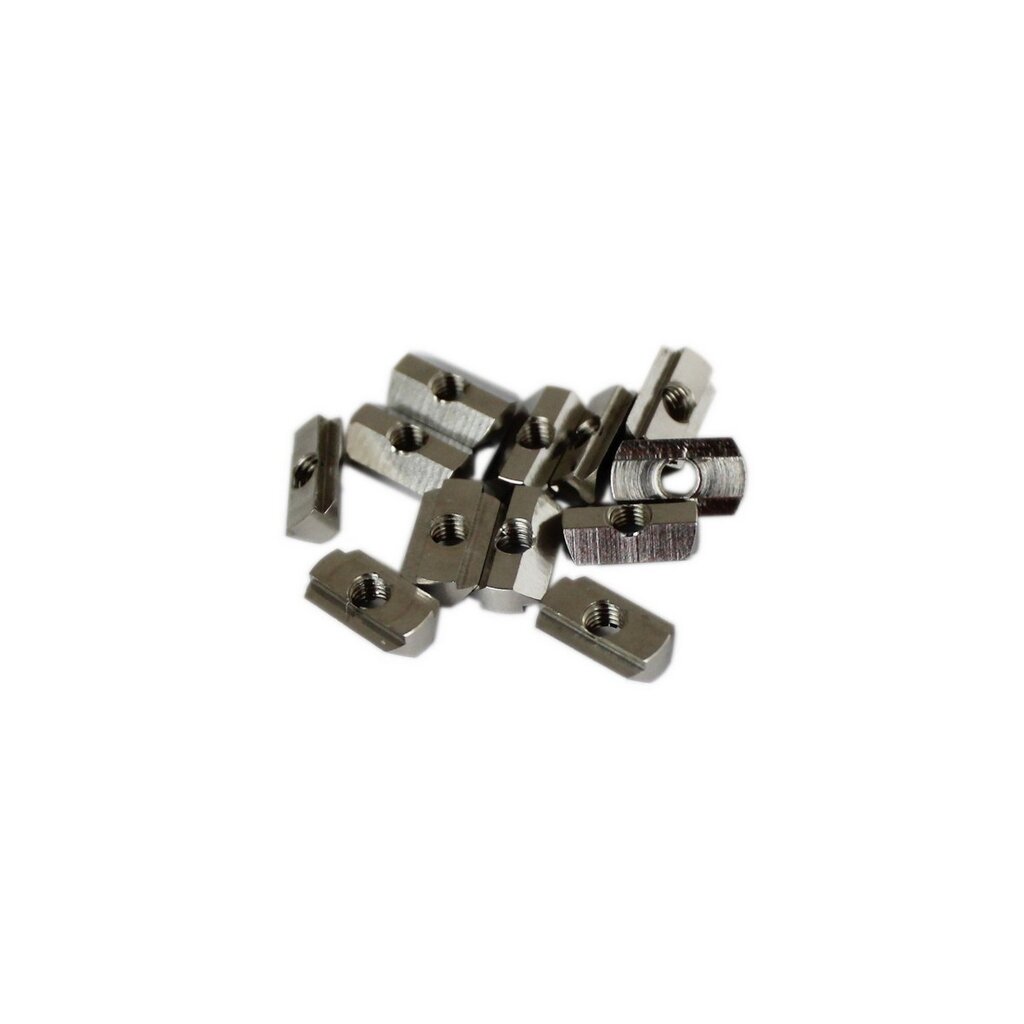

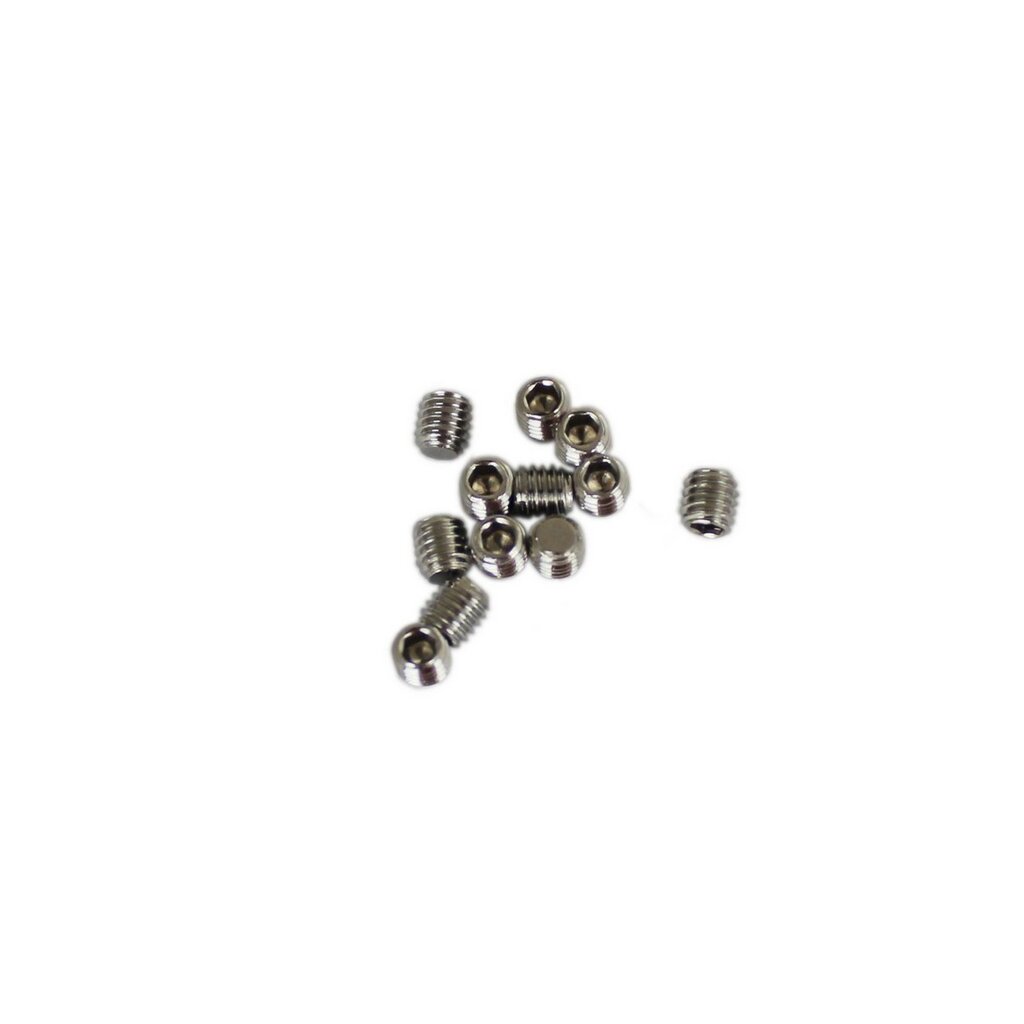

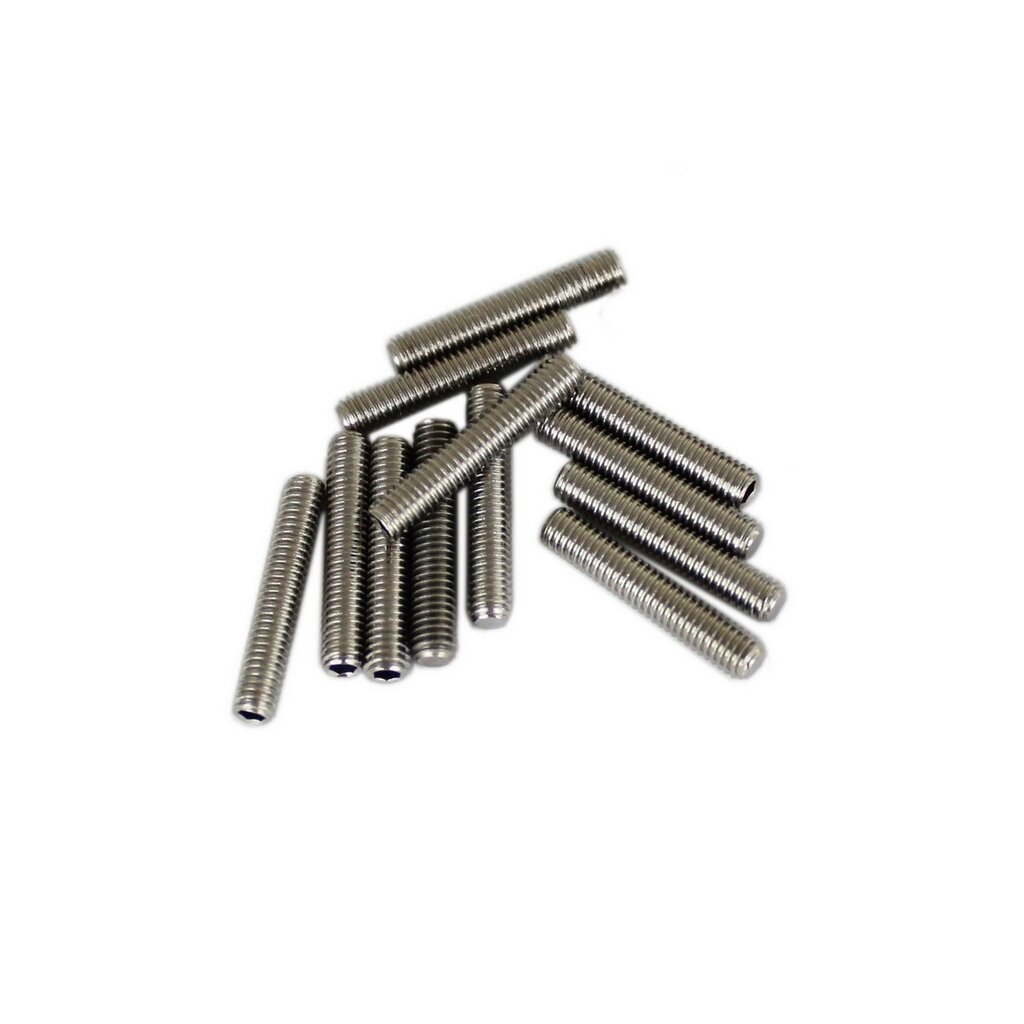

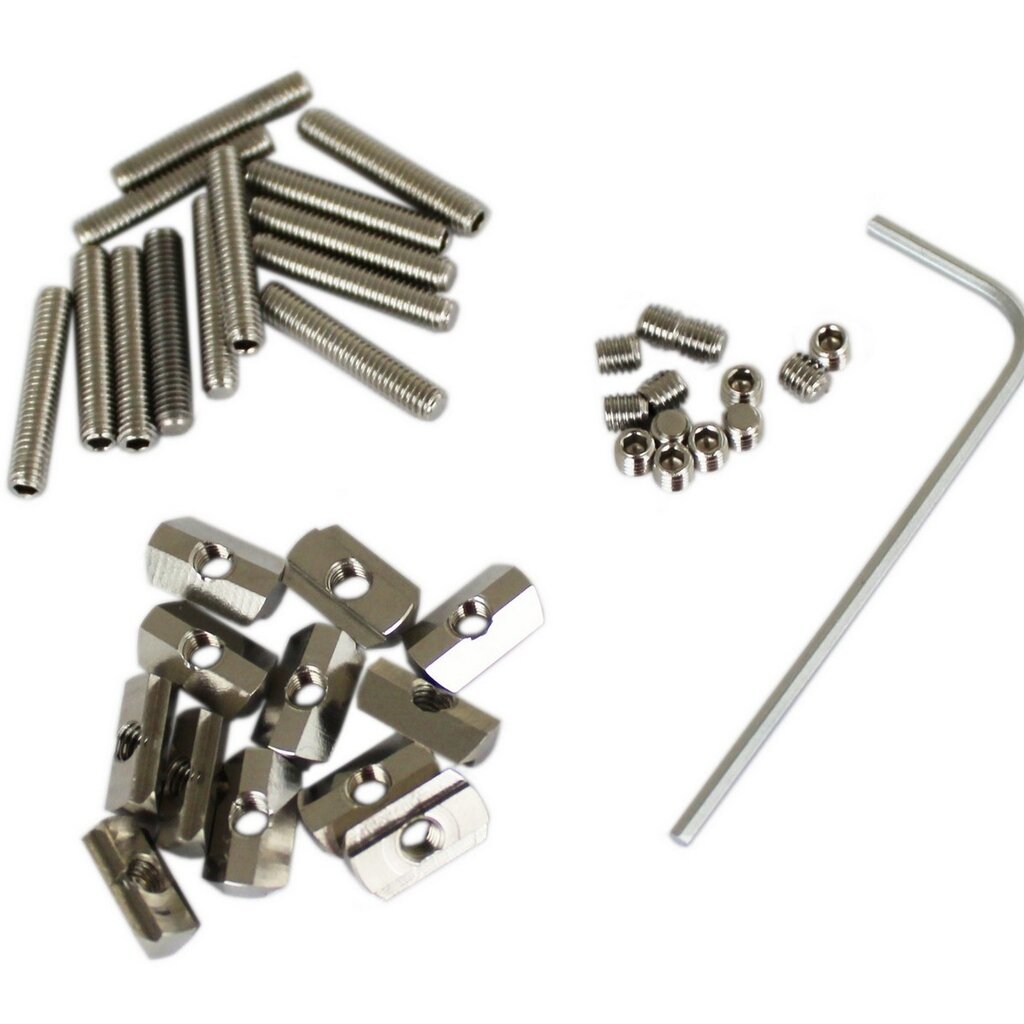

The bag contains 12 pieces of hexagon socket set scews (DIN913 M3x16), 12 pieces of hexagon socket set screws of only 3mm length (ISO4026/DIN913, M3x3), 12 pieces makerBeam M3 T-slot nuts (101619) and a hex or allen key (1,5mm).

We have technical drawings available (.STP, .DXF, .STL, .PDF).
